Proxima. / Wall units

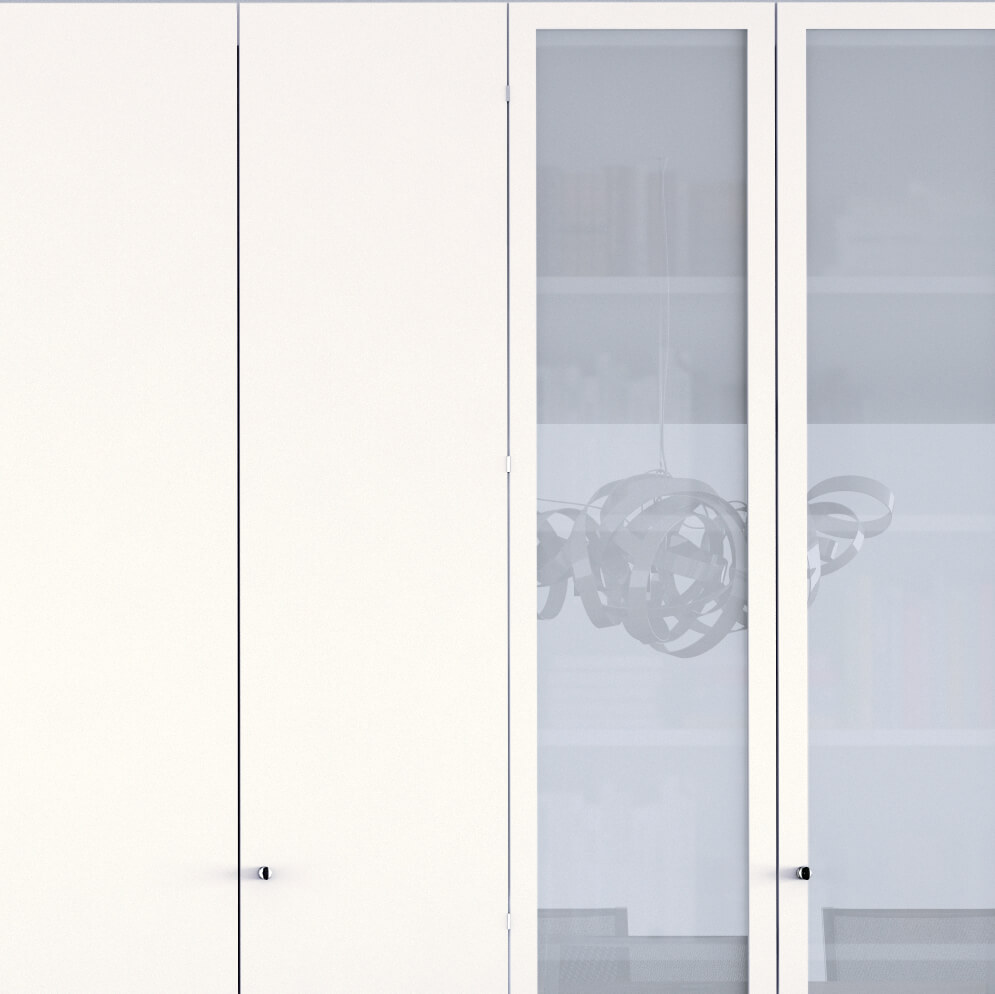

PROXIMA wall unit consists of a supporting structure made of 22 mm thick faced chipboard panels with a silver finish and edged with a double balloon RAL 9006 silver dust-cover. The doors can be either blind or glazed: – blind, made with 18 mm thick faced chipboard panels with standard finishes, edged with 1 mm thick ABS edging in the same color as the glazed panel finishes, in transparent or frosted tempered glass. Hinges with 180° opening and silver color knobs without locks are fitted as standard.

The covering panels (backrests and curtain walls) are also made with 18 mm thick faced chipboard panels with standard finishes, edged with 1 mm thick ABS edge in the same color as the panel finishes, and mounted with RAL 9006 color-shot silver backrests. Thanks to the lower and upper structural bases, the technical compartments are obtained on the ground and on the ceiling for the housing and passage of any wiring, with the possibility of being inspected by dismantling the skirtings and curtain walls.

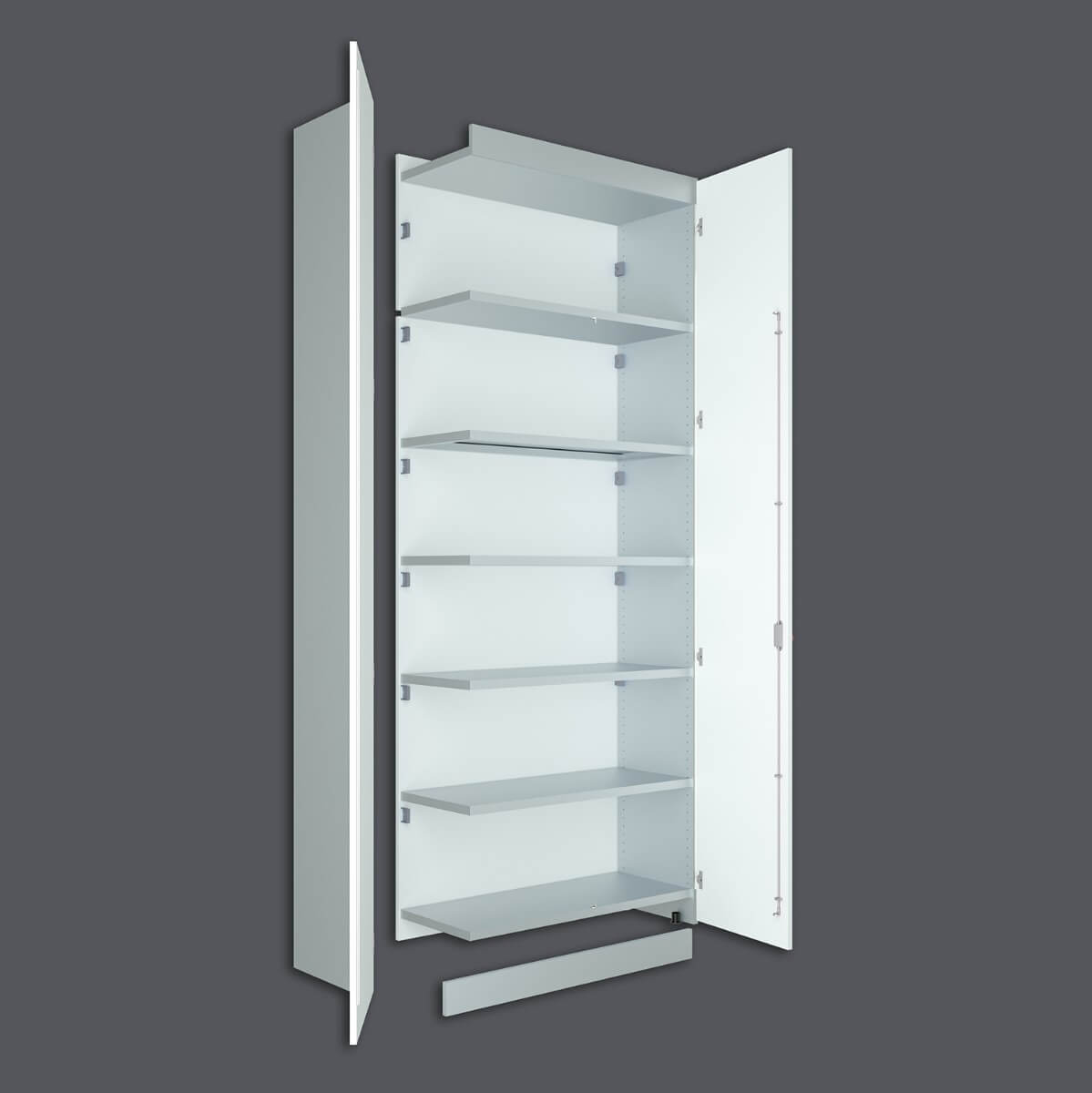

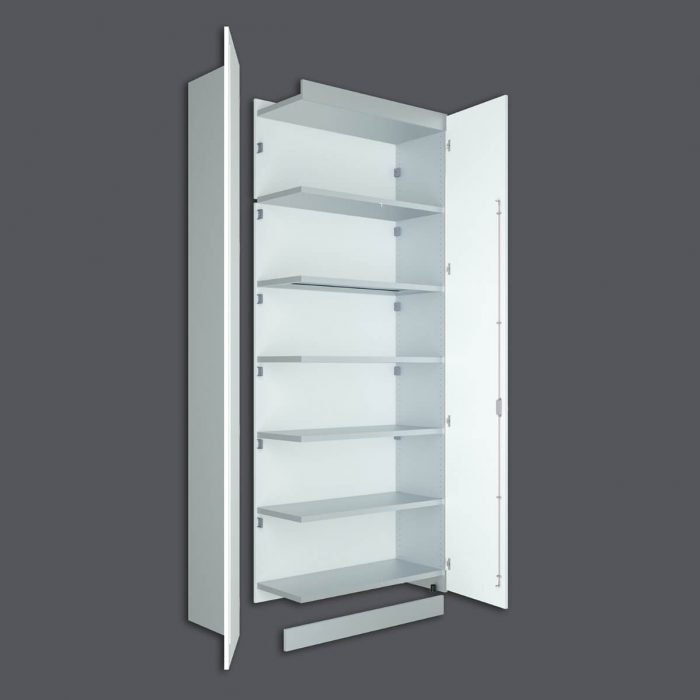

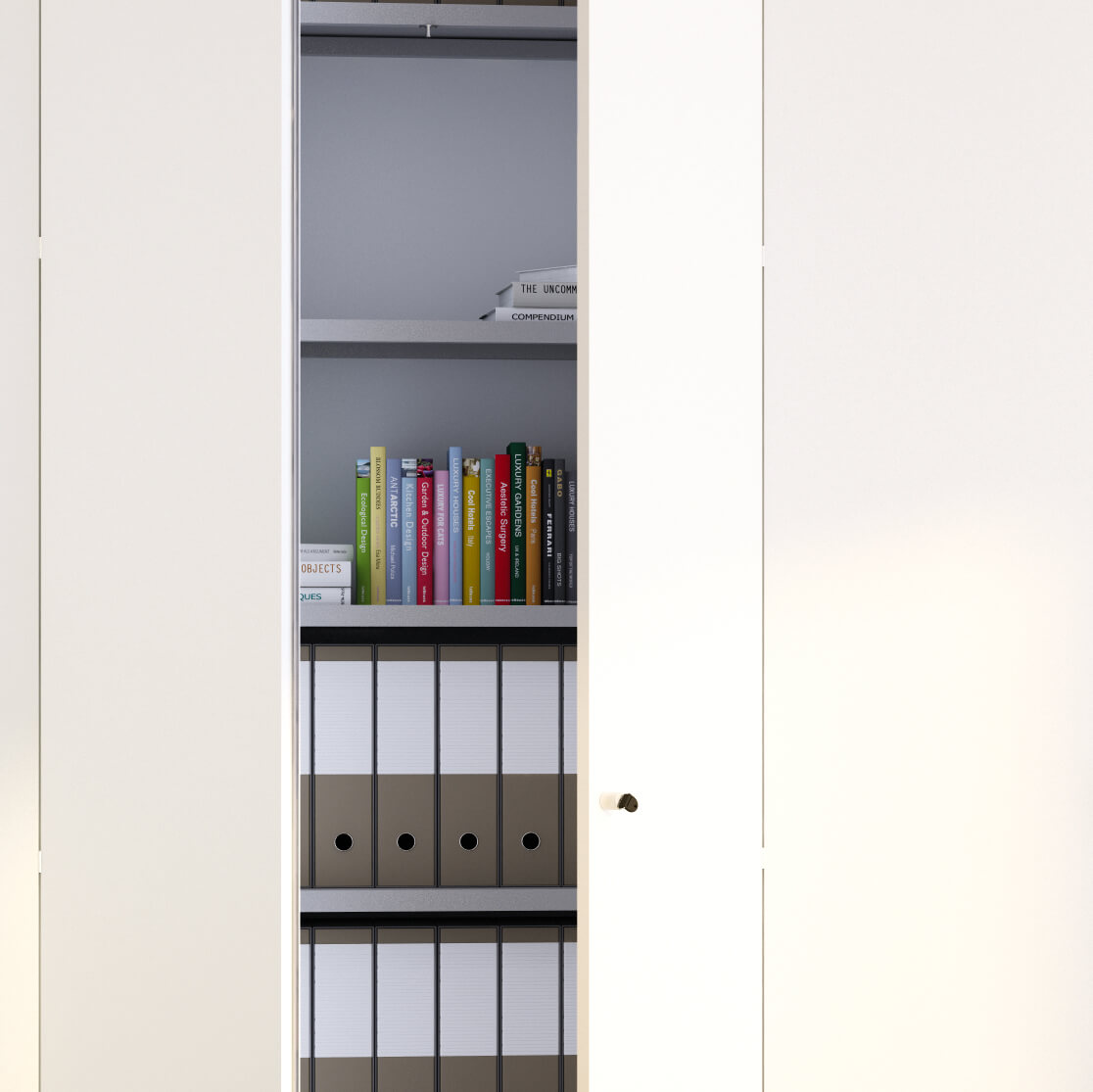

Metal shelves are installed on the inside, adjustable in height thanks to the shelf supports and perforated abutments with vertical holes with 32 mm pitch, prepared for housing suspended files with interaxle spacing of 330 mm. The interiors can be equipped with removable folder holders for hanging files with interaxle spacing of 330 mm, container drawers and various accessories at the discretion of the customer.

You can request: cremone bolt locks, hinges with 110° opening, various types of knobs, wood or lacquered panels. The wall units are available in two widths 500 mm and 1000 mm, all with 460 mm depth (internal useful space of 420 mm) or reduced to 360 mm (internal useful space of 320 mm).

Standard finishes ready in stock: GR gray, AV ivory, BC white, SL silver, light oak RC, gray oak RG, Wengè WG and maple AC. PROXIMA fits perfectly with ESSENTIA, IDEA and WALL GAMES partition walls.




Certificazioni

  • UNI EN 14074-2:2005; EC 1-2011 UNI EN14074-2:2005 – Resistance and durability for doors with vertical axis hinges
  • UNI 8603:2005 – Support resistance
  • UNI 8600:2005 – Bending with concentrated load
  • UNI 8606:1984 – Total load resistance
  • EN17-1:2004 + EN17-2:1994 – Low formaldehyde emission panels class E1

Quality

The company is equipped with a product quality control system; a quality guaranteed by production lines supported by the most modern technologies that allow an outstanding flexibility and rapidity of production.

Need more information?

Are you interested in one of the partition walls and wall units or do you need a customized solution for furnishing your office?
Make an appointment in our showrooms or contact the company for more information.
